Nord Electro 7 61 Key Stage Piano Workstation Keyboard

You are looking at: Nord Electro 7 61 Key Stage Piano Workstation Keyboard

The Nord Electro 7 takes the series to the next level with an enhanced Synth Section, individual effects for each section, and an updated control panel featuring a high-resolution color display. It combines Nord’s latest piano technology with the renowned organ sounds and Rotary Speaker from the Nord Organ 3, delivering a versatile, lightweight instrument designed for outstanding performance on stage.

Specs:

General:

• • Color display
  • Organ, Piano and Synth sound sections
  • Seamless Transitions
  • Split Point Crossfades
  • Pitch Stick and Modulation Wheel on 73 and HP models
  • 20 banks with 25 programs – 500 locations
  • Live Mode: 5 Live programs
  • Selectable split point with LED indication (9 locations)
  • Organize for programs
  • Global Transpose: +/- 6 semitones
  • Global Fine-tune: +/- 50 Cents
  • Program Transpose: +/- 6 semitones
  • MIDI over USB
  • 61/73-key semi weighted waterfall keybed
    73-key Triple sensor Kawai Hammer Action Portable keybed
  • External keyboard feature (Aux KB)
  • Expression Pedal Assign, enabling pedal control of Synth Filter and many effect parameters

Keybed:

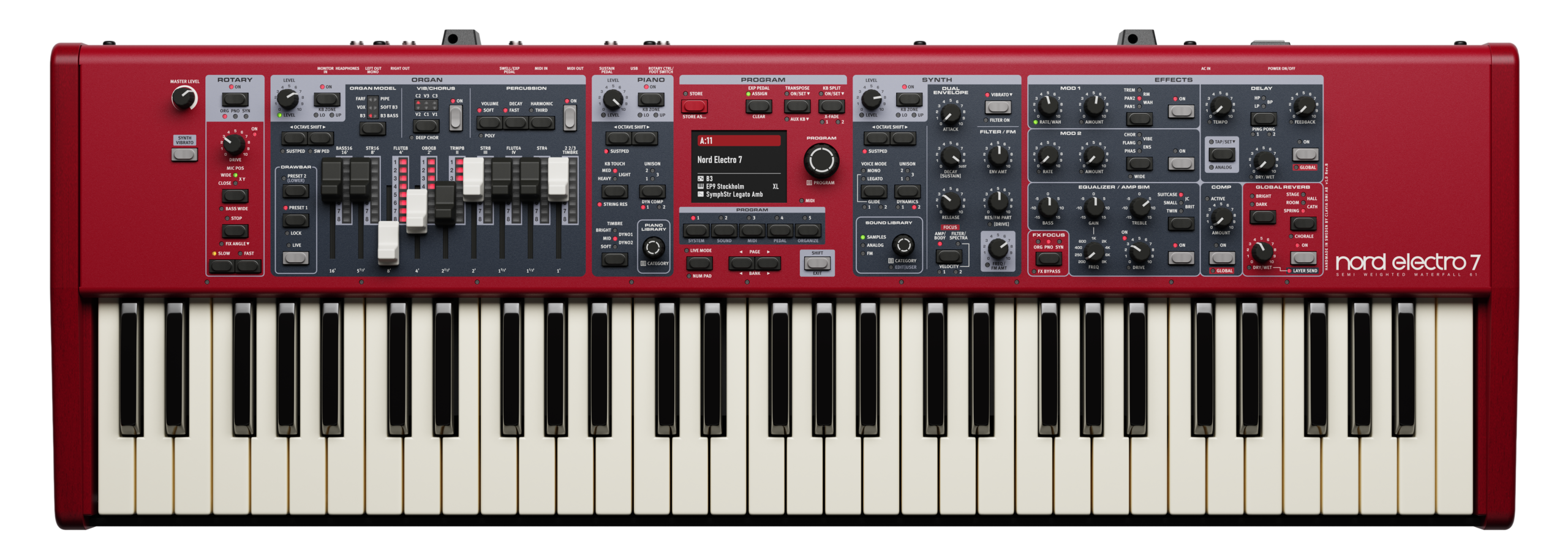

• • Nord Electro 7 61: 61-key (5 octaves, C-C) Semi Weighted Waterfall keyboard

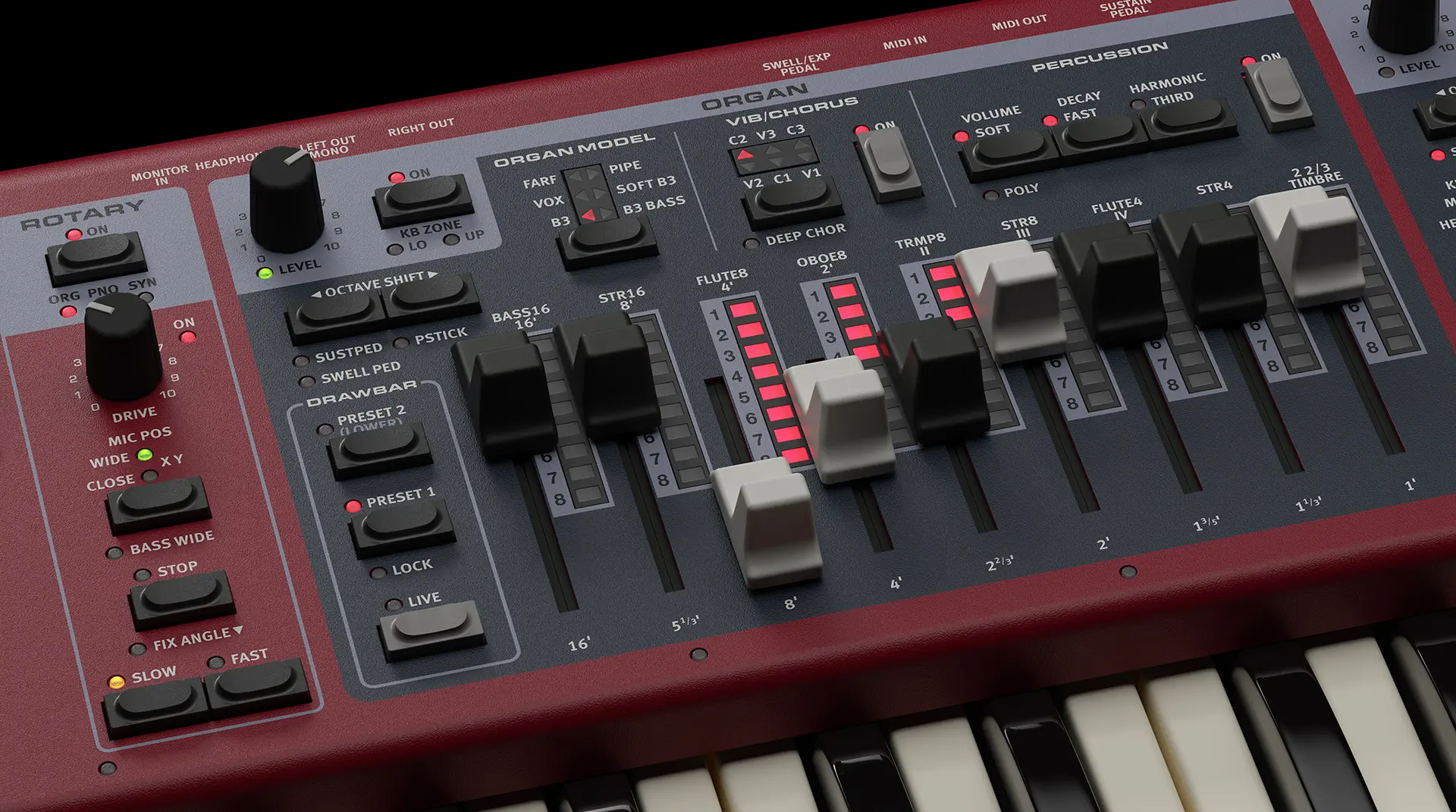

Organ Section:

• • B3, B3+Bass, Soft B3, Vox, Farfisa and Pipe model with full polyphony
  • B3 Percussion Controls with Poly option
  • Vibrato/Chorus with B3 Deep mode
  • Adjustable percussion level and percussion decay
  • 3 Tonewheel modes: select the level of “vintage” desired
  • 2 Organ manual Presets and Live Drawbars
  • Physical Drawbars with LED indicators
  • Mount for Half-Moon Switch on Electro 7 61/73

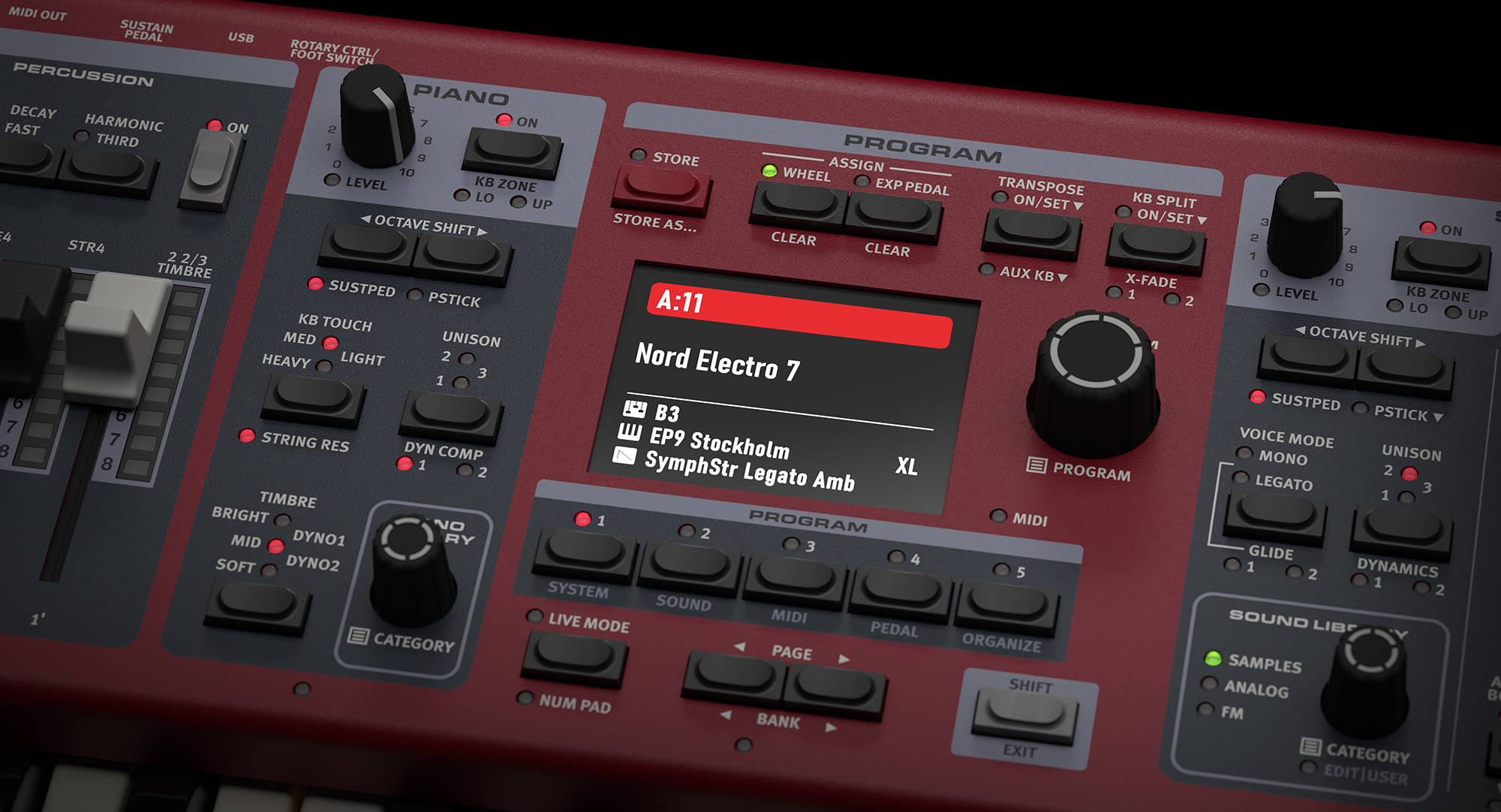

Piano Section:

• • Categories: Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord and Misc/Mallet
  • Pianos can be added, replaced and organized using the Nord Sound Manager
  • String Resonance
  • Timbre settings – individually tailored for acoustic, electric and clavinet sounds
  • 3 KB Touch settings
  • Dynamic Compression for even sound level without altering the tonal character
  • Unison with 3 amount options
  • 120 Voices polyphony for Piano Library sounds.

Synth Section:

• • Sample, Analog and FM synthesis
  • Samples can be added, replaced and organized using the Nord Sound Manager
  • Preset library for Analog and FM sound
  • Amp and Filter/FM ADR/ASR envelopes
  • Velocity and Amount controls for Filter/FM envelope
  • Low Pass Filter with Cutoff and Resonance controls for Analog and Sample sounds
  • Amount and Partial controls for FM
  • Mono, Legato and Glide options
  • Unison with 3 amount options
  • 3 Dynamics/amp velocity options
  • Vibrato with adjustable rate, amount and delay
  • Synth Vibrato button for real time control
  • 30+ voice polyphony

Rotary Speaker:

• • Rotary Speaker emulation from Nord Organ 3
  • Close, Wide and XY Mic Position options
  • Bass Wide (stereo) option
  • Dedicated tube Drive control
  • Fix Angle option for Stop position (user adjustable)

Effects:

• • Dedicated Effects for Organ, Piano and Synth
  • FX Focus with FX Bypass option
  • Expression Pedal can be assigned to most effect parameters

Equalizer/Amp Simulations:

• • Twin, Small, Suitcase, JC and Brit amp models
  • Drive
  • Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation

Compressor:

• • Amount control and Global option

Mod 1:

• • Pan1 (Soft), Pan2 (Hard), Tremolo, Wah and Ring Modulator
  • Dedicated Rate and Amount Controls

Mod 2:

• • Phaser, Flanger, Chorus, Vibe and Ensemble
  • Wide option for stereo width
  • Dedicated Rate and Amount Controls

Delay:

• • Tempo with Tap function
  • Feedback and Dry/Wet controls
  • Low Pass, High Pass and Band Pass feedback filter options
  • Ping Pong with 3 amount options
  • Analog mode
  • Global mode

Global Reverb:

• • Spring, Room, Stage, Hall and Cathedral reverb types
  • Spring Reverb placed before Rotary Speaker
  • Chorale option for all reverb types
  • Bright/Dark options
  • Dry/Wet control with Layer Send mode for individual control of reverb level per section

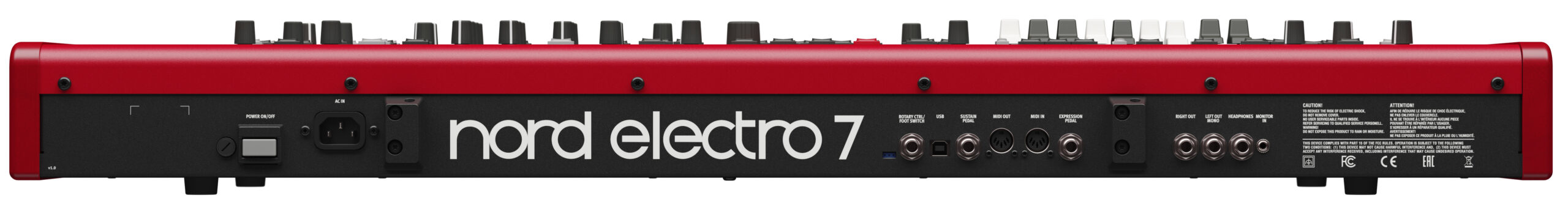

Connections:

• • 2 Audio outputs L & R – ¼”, 6,35 mm jacks, unbalanced
  • 1 Monitor input – 1/8″, 3,5 mm stereo jack
  • 1 Headphone output – ¼”, 6,35 mm stereo jack
  • 1 Expression pedal input – ¼”, 6,35 mm TRS stereo jack
  • Sustain Pedal – ¼”, 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals
  • Rotary Control/Foot Switch – ¼”, 6,35 mm jack.
    Use a momentary pedal or a switch type pedal.
  • MIDI In – 5 pin DIN connectors
  • USB – type B connector for USB MIDI, Software Update and Sound Transfer
  • Power Cord with IEC C14 connector

Included Accessories:

• • User Manual

• • Power cord

Dimensions & Weight

• 901 mm (35.5″) x 104 mm (4.1″) x 294 mm (11.6″)
