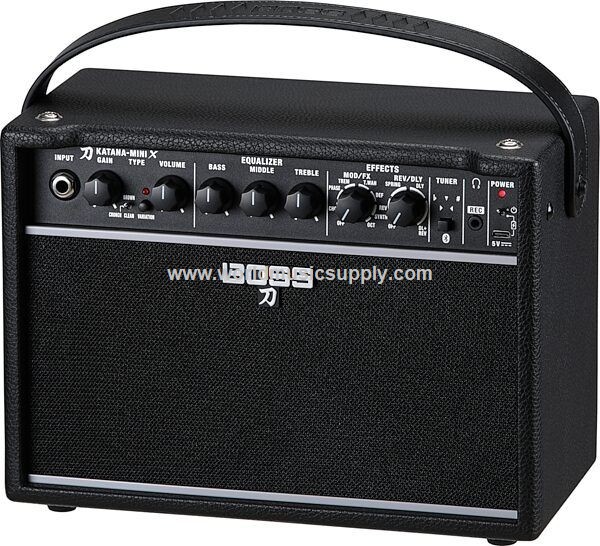

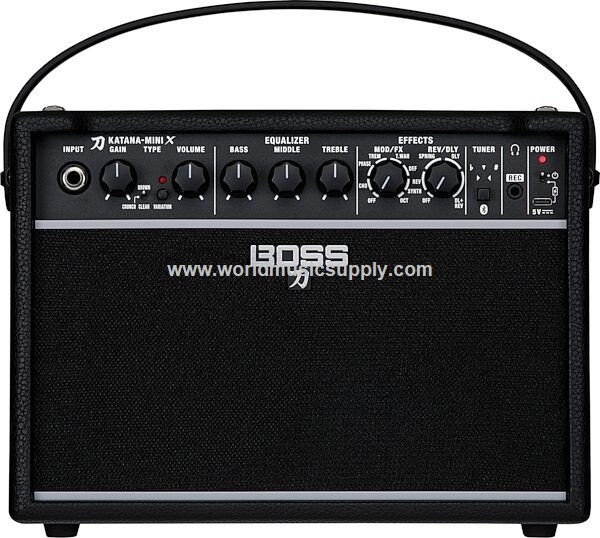

Boss Katana KTN Mini X 10 Watt Electric Guitar Amplifier

Boss Katana KTN Mini X 10 Watt Electric Guitar Amplifier

Inspiring Quality, Minimal Design

Katana-Mini X delivers acclaimed Katana tones in a fun and inspiring amp for daily practice and jamming. Evolving on the features of the popular Katana-Mini, it offers six versatile analog sound options and two simultaneous effects, housed in a robust wood cabinet for a bigger and fuller guitar experience. Katana-Mini X also provides many enhancements to energize your playing sessions, including an onboard tuner, front-facing panel controls, an internal rechargeable battery, and onboard Bluetooth® for streaming music from your smartphone.

Standard Features

• Inspiring Katana tone in a 10-watt mini amp
• Multi-stage analog gain circuit developed with the acclaimed BOSS Tube Logic approach
• Rich, full sound with a robust wood cabinet and a custom 5-inch speaker
• Three versatile amp types: Brown, Crunch, and Clean
• Three variations for each amp type, including a flat-response variation for acoustic-electric guitar and bass
• Three-band analog tone stack for smooth sound adjustment
• Two independent effect sections with 10 total effect types to choose from
• Intuitive panel with front-facing controls
• Guitar/bass tuner with panel indicators
• Wirelessly stream audio from a mobile device via onboard Bluetooth
• Dedicated output with cabinet simulation and stereo effects for headphone practice and recording
• Rechargeable battery with up to 10 hours of continuous playing time*
• USB-C® jack for charging (USB Type-C to Type-A charging cable included)

Specifications

Rated Power Output

10 W

Nominal Input Level

INPUT: -10 dBu (1 M ohm)

Speaker

12 cm (5 inches)

Controls

POWER switch
TYPE switch
VARIATION button

GAIN knob
VOLUME knob

[EQUALIZER]
BASS knob
MIDDLE knob
TREBLE knob

[EFFECTS]
MOD/FX knob
REV/DLY knob

[TUNER/Bluetooth]
TUNER/Bluetooth button

Indicators

POWER
VARIATION
TUNER/Bluetooth

Connectors

INPUT jack: 1/4-inch phone type
PHONES/REC jack: Stereo miniature phone type
5 V (DC IN) port: USB Type-C(R)

Bluetooth

Profile Support: A2DP (Audio)

Power Supply

Rechargeable nickel-metal hydride battery

Current Draw

1500 mA

Expected battery life under continuous use

Approximately 10 hours
*These figures will vary depending on the actual conditions of use.

Battery charging time

Approximately 3 hours
*To charge the unit, use the USB port of a computer or a commercially available USB power supply adaptor (5 V, 2 A or higher).

Accessories

Leaflet “Read Me First”
USB Type-C(R) to USB Type-A cable for charging

Size and Weight

Width

287 mm
11-5/16 inches

Depth

145 mm
5-3/4 inches

Height

200 mm
7-7/8 inches

Weight (including strap)

2.7 kg
6 lbs
