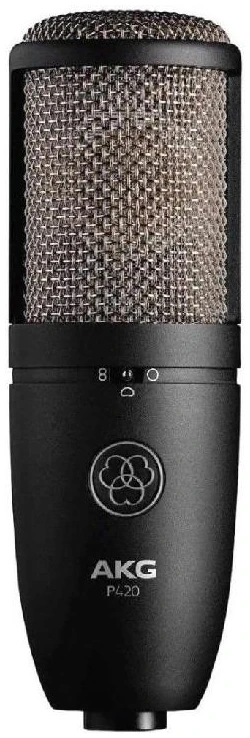

The P420 is a multi-pattern large diaphragm true condenser microphone for demanding project studio recording applications. Offering high sensitivity and 155dB maximum SPL, the P420 delivers a warm, transparent sound quality perfectly suited for ensemble recording, grand piano, woodwind and brass instruments, as well as drums and percussion. With three selectable polar patterns cardioid, omnidirectional or figure 8; it is an ideal tool for stereo miking techniques and ambient recording.
General Specifications
- Audio frequency bandwidth 20 – 20000 Hz
- Equivalent noise level 15 dB-A
- Sensitivity 28 mV/Pa
- Signal to Noise 79 dB-A
- Preattenuation Pad -20 dB
- Bass cut filter 300 Hz – 12 dB/octave
- Electrical impedance <= 200 Ohms
- Recommended load impedance >= 1000 Ohms

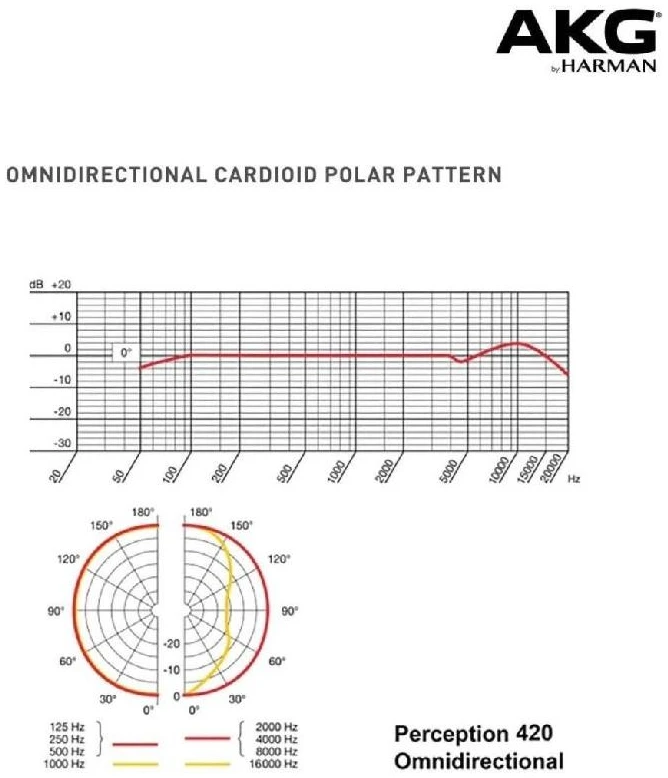

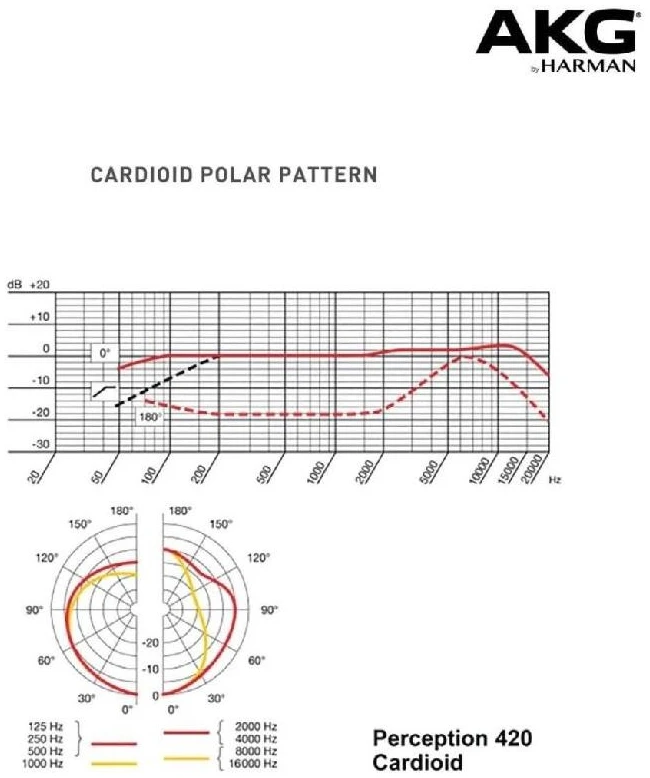

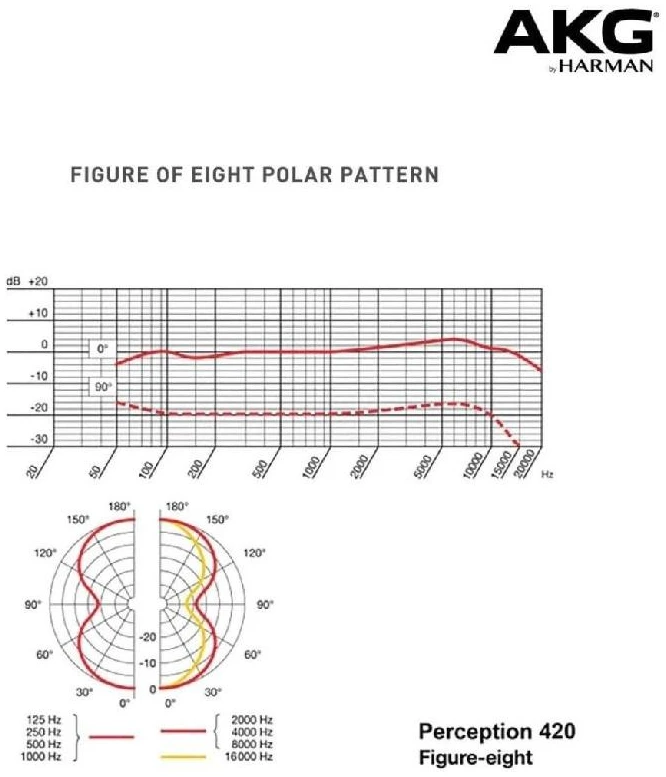

- Polar Patterns Cardioid, Omnidirectional, and Figure of eight
Dimensions
- Length 165 mm
- Diameter 54 mm
- Net Weight 530 g
Audio Output
- Type Balanced XLR
- Gender Male
- Contacts 3-pin
Powering Interface
- Voltage 44 to 52 V
- Current <= 3 mA
Application
- Project Studio Yes
Instrument
- Piano / Strings Yes
- Horns / Woodwinds Yes
- Drums / Percussion Yes
