AKG P220 Perception-120 one inch true condenser large diaphragm capsule


AKG P220 as Perception 120 with one inch true condenser large diaphragm capsule.

Availability: 3 in stock

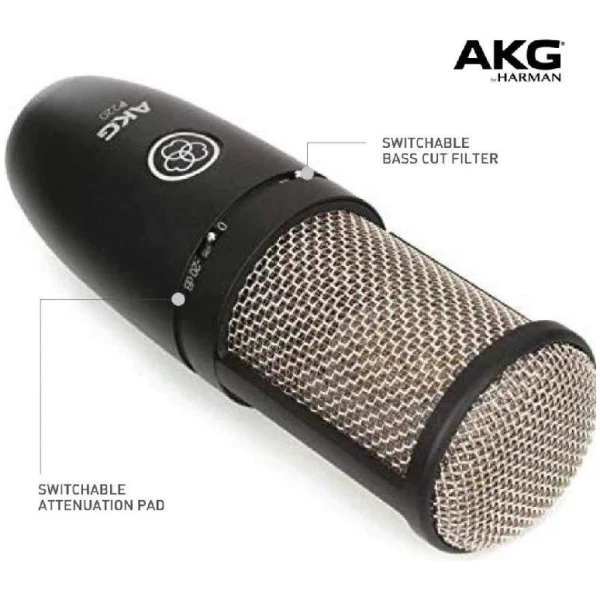

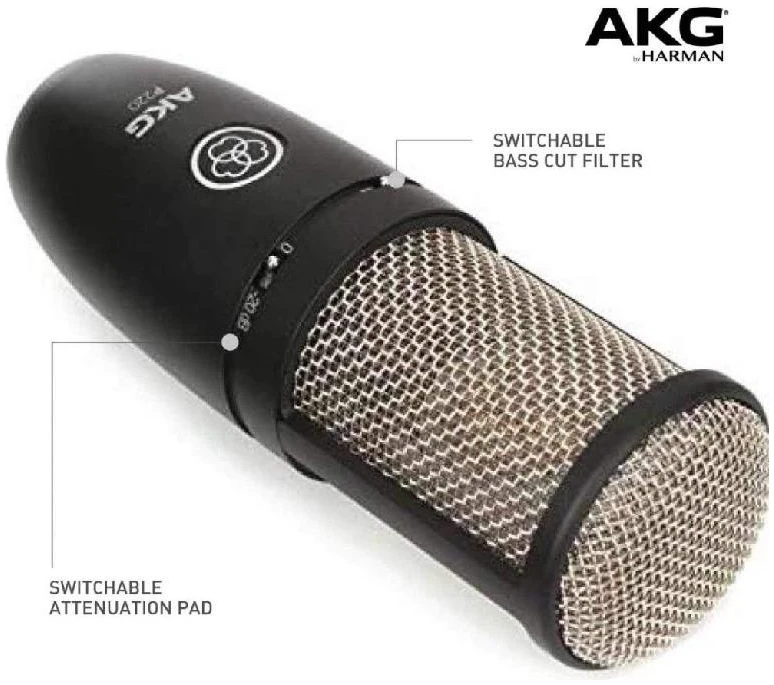

The P220 is a large-diaphragm true condenser microphone offering a warm and clear sound for lead vocals, acoustic guitar and brass instruments. A switchable bass-cut filter and attenuation pad make it perfectly suited for use on loud sound sources with sound pressure levels up to 155dB SPL. The rugged and roadworthy design also makes the P220 a perfect choice for on-stage applications.

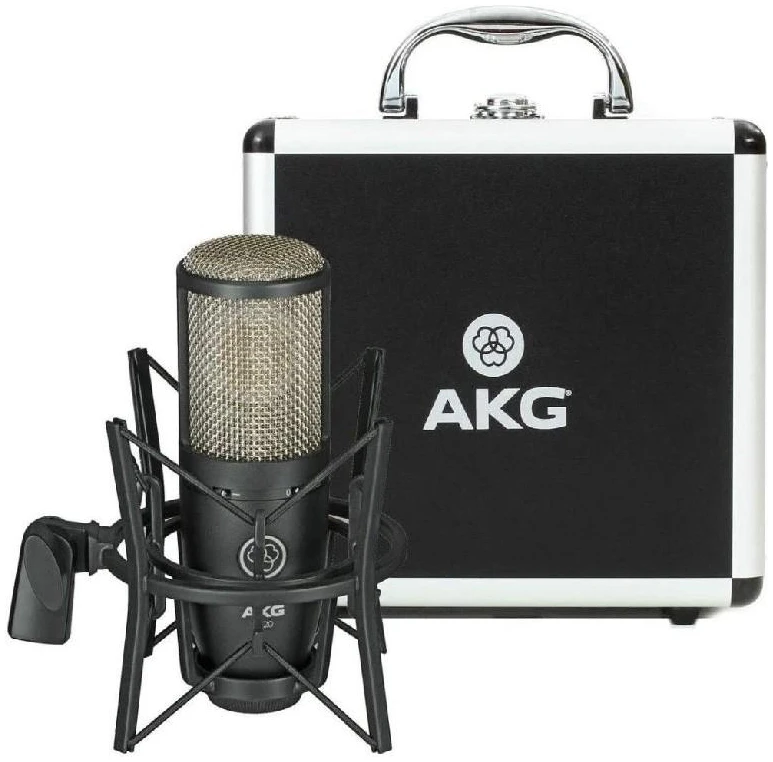

The P220 represents the most popular and successful microphone within the actual Project Studio Line. It comes complete with a spider-type shock mount in an aluminum carrying case.

General Specifications

  • Polar Pattern Cardioid
  • Audio frequency bandwidth 20 – 20000 Hz
  • Equivalent noise level 16 dB-A
  • Sensitivity 20 mV/Pa
  • Signal to Noise 78 dB-A
  • Preattenuation Pad -20 dB
  • Bass cut filter 300 Hz – 12 dB/octave
  • Electrical impedance <= 200 Ohms
  • Recommended load impedance >= 1000 Ohms


  • Length 165 mm
  • Diameter 54 mm
  • Net Weight 530 g

Audio Output

  • Type Balanced XLR
  • Gender Male
  • Contacts 3-pin

Powering Interface

  • Voltage 44 to 52 V
  • Current <= 3 mA


  • Project Studio Yes
  • Live Instrument Yes


  • Vocals Yes
  • Piano / Strings Yes
  • Horns / Woodwinds Yes
