EarthQuaker Devices Chelsea Low End Fuzz Driver Guitar Pedal

EarthQuaker Devices Chelsea Low End Fuzz Driver Guitar Pedal

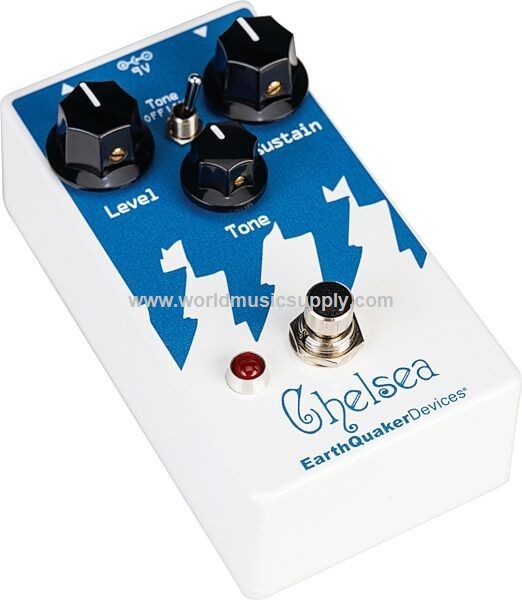

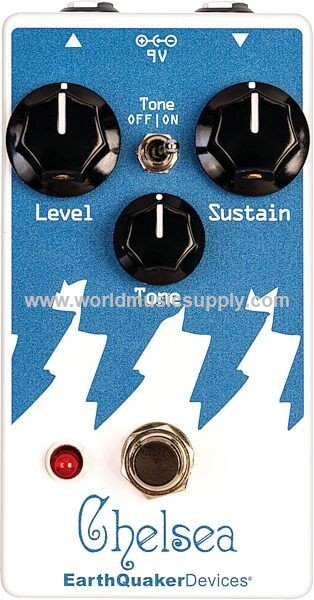

With only three controls, this deceptively powerful pedal offers you everything from light overdrive to full on distortion with clarity and blissful grinding. A Tone On/Off switch allows you remove the Tone control from the circuit, opening up a whole new world of midrange grind. Switch it off for a simplified and straightforward attack or leave it on for a full-bodied distortion with loads of low-end with a slight natural scoop. Roll up the Sustain for wall-shaking bass notes or sustaining lead and adjust the Tone for a wild and wide frequency response from aggressive top end to low-end rumble.

Dimensions

4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw

10 mA

Input Impedance

50 kΩ

Output Impedance

<10 kΩ

Switching

This device uses relay-based true bypass switching; it requires power to pass signal.

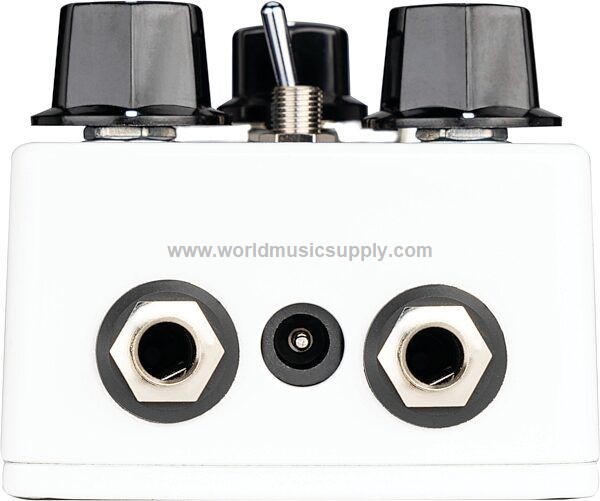

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
