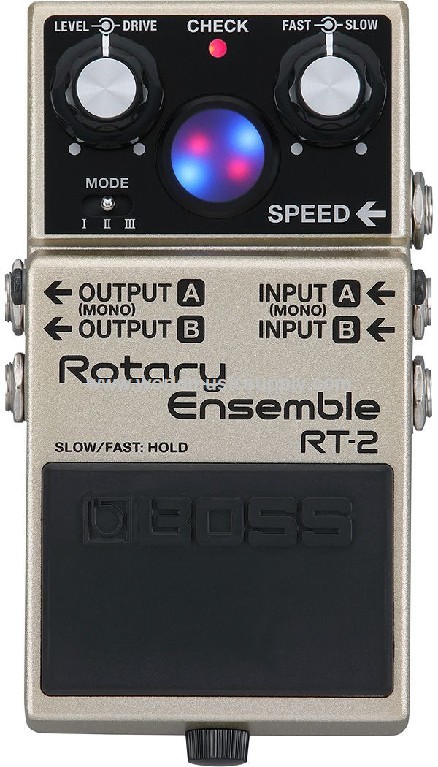

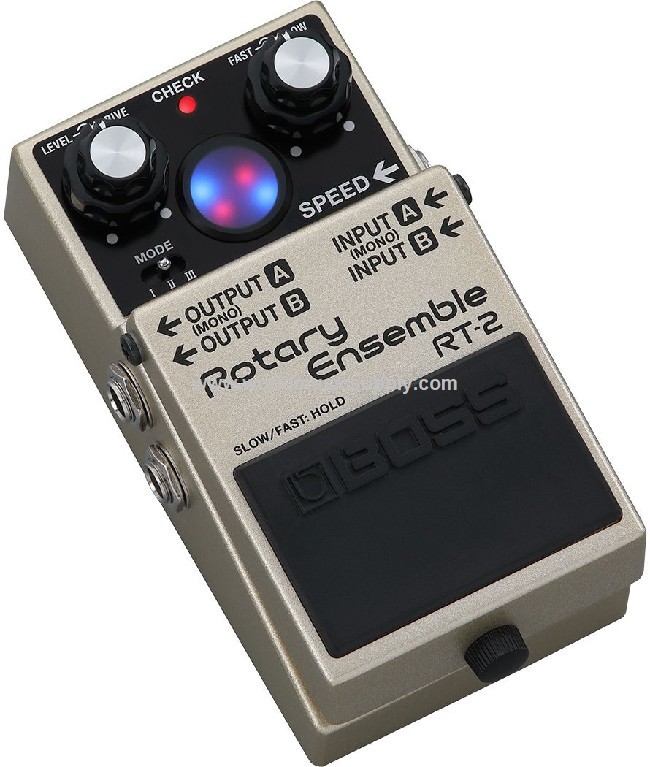

Boss RT-2 Guitar Rotary Speaker Ensemble Pedal

You are looking at a Boss RT-2 Guitar Rotary Speaker Ensemble Pedal

Rotary Revolution

• Rotary speaker cabinets sound amazing, but their size and weight make them impractical for anyone but the most dedicated vintage enthusiasts. Powered by the latest BOSS advancements, the RT-2 Rotary Ensemble distills this expressive spatial effect into a footprint that’s easy to integrate into every setup. This powerhouse pedal authentically recreates the complex sonic magic of its inspiration, supported by three sound modes, deep tonal shaping, and advanced operation with the onboard pedal switch and external control.

Specs:

• Sample Rate: 48 kHz
• AD Conversion: 24 bits + AF method AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
• DA Conversion: 32 bits
• Nominal Input Level: INPUT A (MONO), INPUT B: -20 dBu
• Maximum Input Level: INPUT A (MONO), INPUT B: +7 dBu
• Input Impedance: INPUT A (MONO), INPUT B: 1 MΩ
• Nominal Output Level: OUTPUT A (MONO), OUTPUT B: -20 dBu
• Maximum Output Level: OUTPUT A (MONO), OUTPUT B: +7 dBu
• Output Impedance: OUTPUT A (MONO), OUTPUT B: 1 kΩ
• Recommended Load Impedance: OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater
• Bypass: Buffered bypass

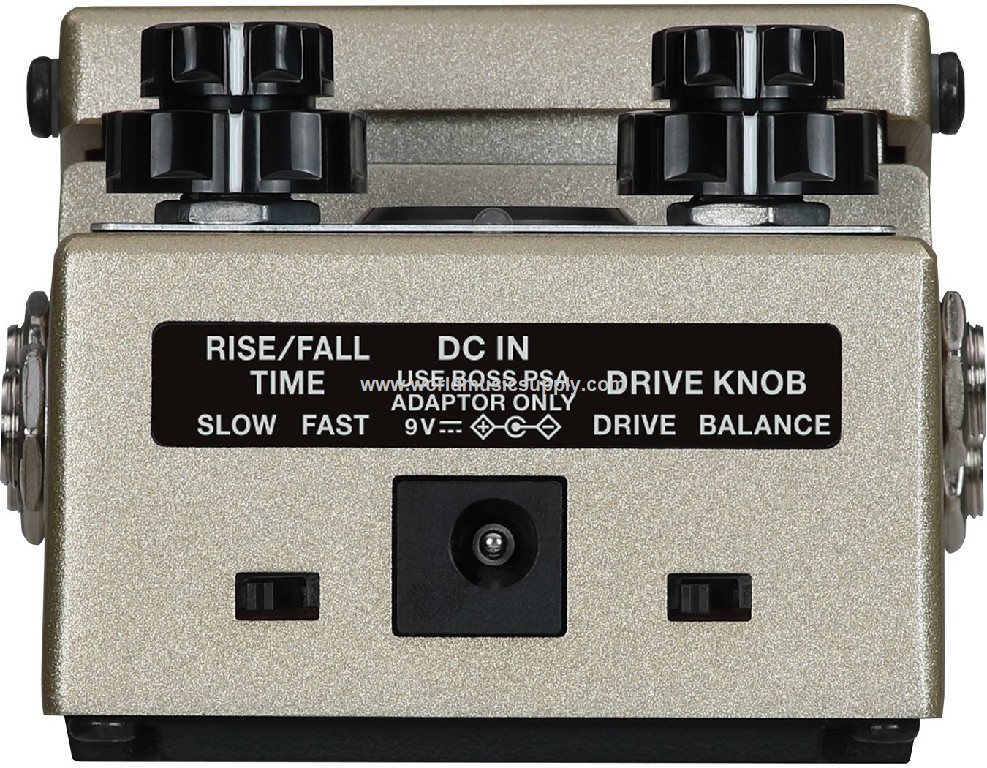

• Controls: SLOW knobFAST knobDRIVE knobLEVEL knobMODE switchPedal switchRISE/FALL TIME switchDRIVE KNOB switch
• Indicator: CHECK indicator (Used for indication of Tempo and check battery)VIRTUAL ROTOR
• Connectors: INPUT A (MONO) jack, INPUT B jack, OUTPUT A (MONO) jack, OUTPUT B jack: 1/4-inch phone typeCTL/EXP jack: 1/4-inch TRS phone typeDC IN jack
• Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22, commercially available)AC adaptor (PSA series: sold separately)
• Current Draw: 115 mA
• Expected battery life under continuous use: Alkaline: Approx. 2.5 hours*These figures will vary depending on the actual conditions of use.
