Boss GX-10 Guitar & Bass Multi-effects Pedal

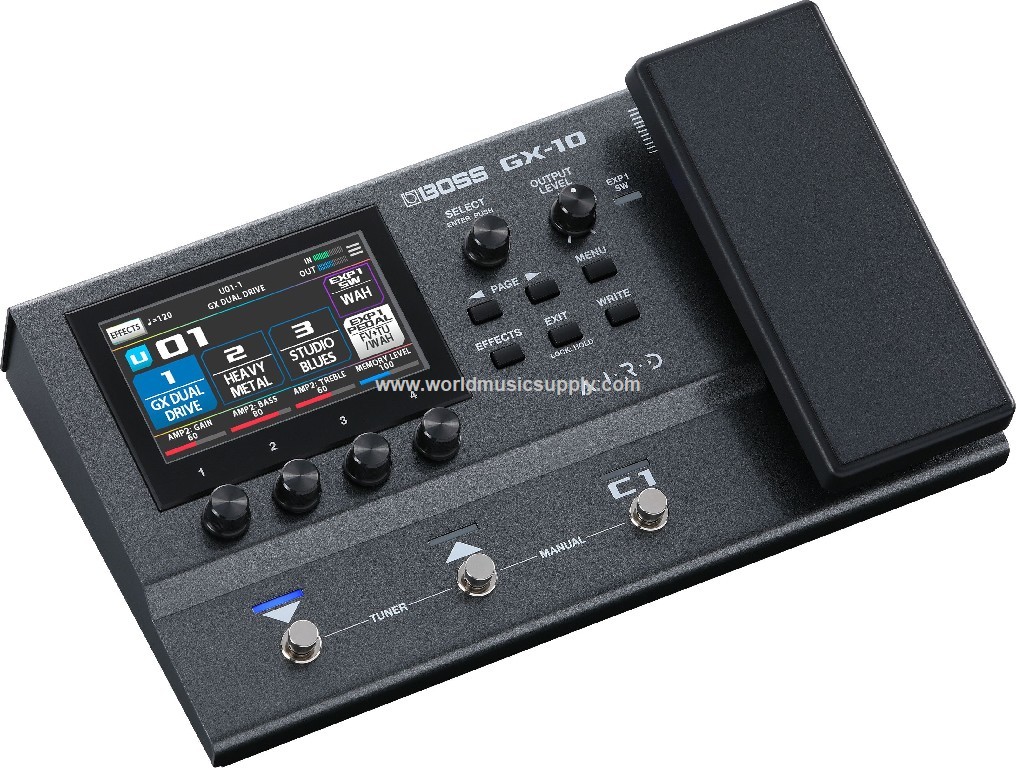

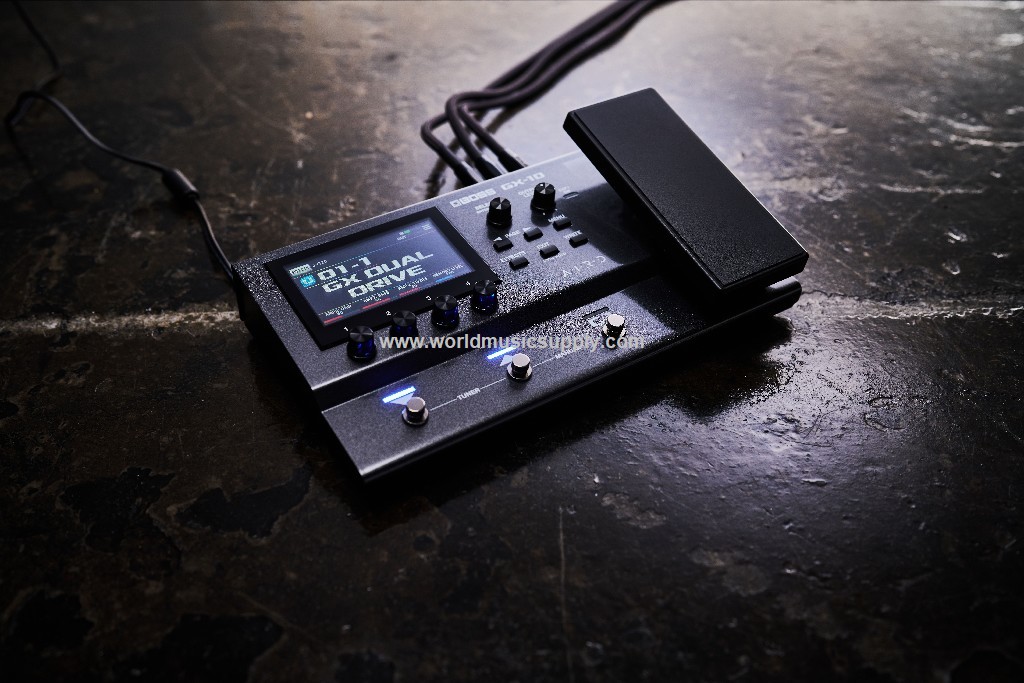

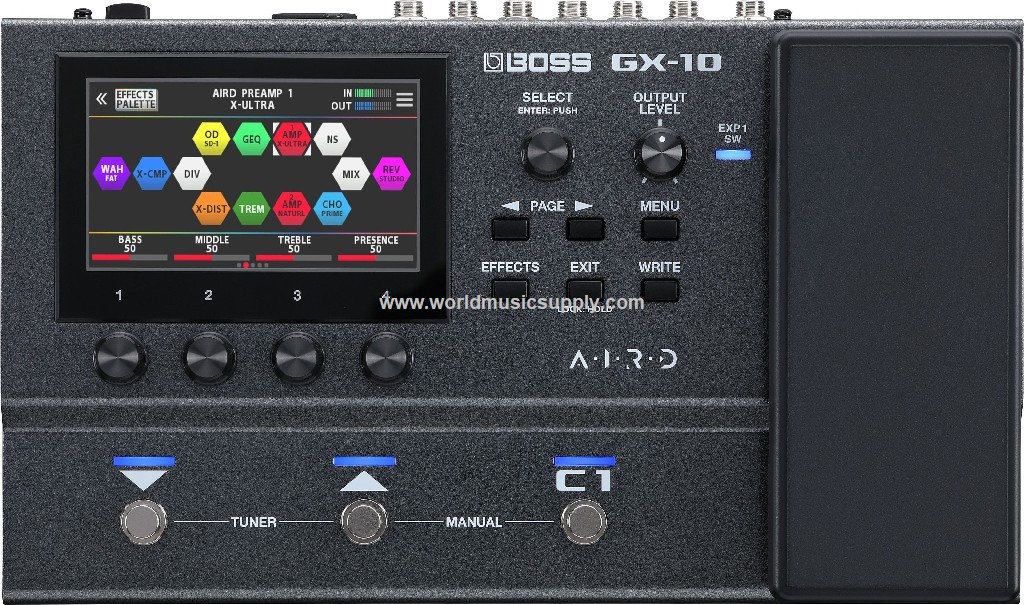

You are looking at a Boss GX-10 Guitar & Bass Multi-effects Pedal

Description:

Colorful Tones, Portable Design

Players everywhere love the GX-100 for its streamlined design, free-flowing interface, and high-quality tones. Armed with the core GX-100 engine, the compact GX-10 brings you the same inspiring experience in an even more portable footprint. You get loads of AIRD amps and effects for covering every style, plus speedy sound building with the intuitive color touch display and panel knobs. Adding in multi-mode footswitches, an integrated expression pedal, and USB audio connectivity, the GX-10 seamlessly transitions from nightly stage performing to desktop recording, song creation, and daily practice sessions.

Standard Features

• Compact amp/effects processor for guitar and bass
• The same sound engine and color touch display as the GX-100 in a portable, travel-ready design
• Exceptional audio quality with 24-bit AD and 32-bit DA conversion, 32-bit floating-point processing, and 48 kHz sampling rate
• Authentic tube amplifier tone and touch response with AIRD technology
• 32 amplifier types and 170 BOSS effects
• Ultra-flexible amp/effect routing up to 15 assignable blocks
• Wide selection of onboard speaker types and support for loading WAV speaker IRs
• Streamlined modern design with a rugged metal chassis
• Three footswitches with flexible control modes
• Onboard expression pedal with toe switch
• Connect up to two footswitches or an expression pedal for expanded control
• Send/return loop for external pedals
• Record and play tracks in music production software on a computer or mobile device* via a USB-C®
• Edit sounds from your computer with BOSS Tone Studio for macOS and Windows
• Download and share Livesets at BOSS Tone Exchange (compatible with GX-100 Livesets)
• Optional Bluetooth® Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or Android mobile device

Specs:

• Sampling Frequency: 48 kHz
• AD Conversion: 24 bits + AF method*AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
• DA Conversion: 32 bits
• Processing: 32-bit floating point
• Effects: 170 Types
• Maximum Number of Effects: 15+3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP)*depending on the circumstances
• Memories: 198 (User) + 99 (Preset)
• Phrase Loop: 38 sec. (MONO)19 sec. (STEREO)
• Tuner Internal Detection: +/-0.1 cent
• Nominal Input Level: INPUT: -10 dBuRETURN: -10 dBu
• Maximum Input Level: INPUT: +7 dBuRETURN: +7 dBu
• Input Impedance: INPUT: 1 M ohmRETURN: 1 M ohm
• Nominal Output Level: OUTPUT (L/MONO, R): -10 dBuPHONES: -10 dBuSEND: -10 dBu
• Output Impedance: OUTPUT (L/MONO, R): 1 k ohmPHONES: 44 ohmsSEND: 1 k ohm
• Recommended Load Impedance: OUTPUT (L/MONO, R): 10 k ohms or greaterPHONES: 44 ohms or greaterSEND: 10 k ohms or greater
• Controls: DOWN switch, UP switch, CTL1 switch, POWER switch, EXP1 switch,PAGE button, MENU button, EFFECTS button, EXIT button, WRITE button, 1-4 knobs, SELECT knob, OUTPUT LEVEL knob,EXP1 pedal

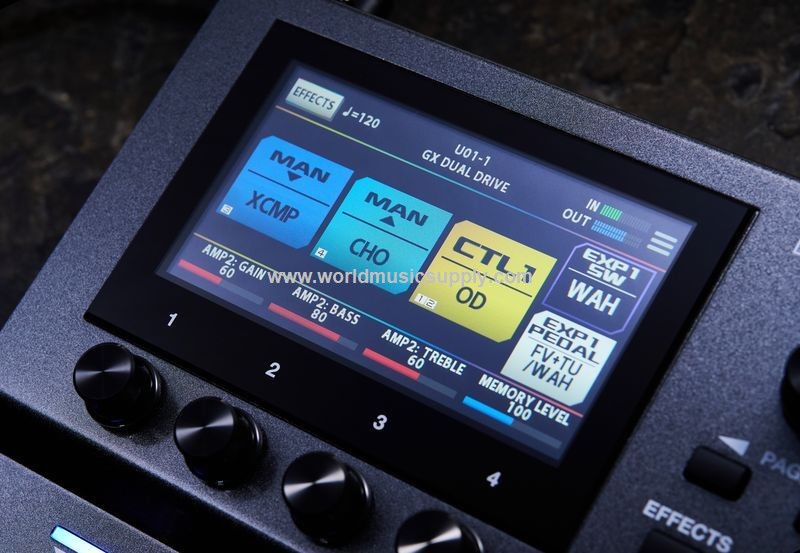

• Display: Color Graphic LCD (480 x 272 dots) Touch screen

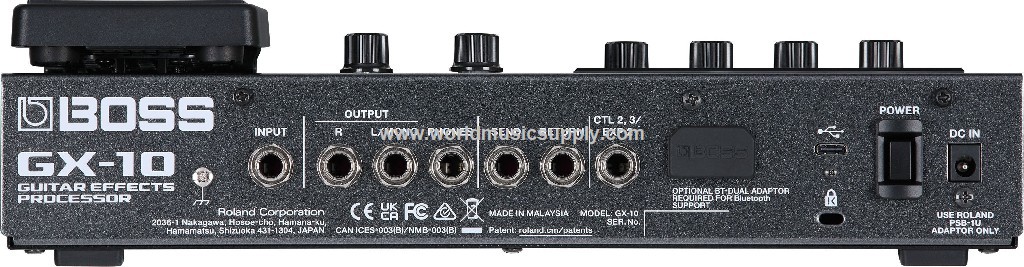

• Connectors: INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type, PHONES jack: Stereo 1/4-inch phone typeCTL2,3/EXP2 jackUSB COMPUTER port: USB Type-C®Bluetooth® ADAPTOR connector: Dedicated connectorDC IN jack
• Power Supply: AC adaptor
• Current Draw: 600 mA
• Power consumption when in OFF mode (when the power automatically turns off): 0.0 W
• Accessories: AC adaptor (PSB-1U + AC Cord Set)Owner’s manualLeaflet “USING THE UNIT SAFELY”
• Options (sold separately): Footswitch: FS-5U, FS-5L, FS-6, FS-7Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5Bluetooth® Audio MIDI Dual Adaptor (Model BT-DUAL)Wireless MIDI Expression Pedal: EV-1-WLWireless Foot Switch: FS-1-WLCarrying Case: CB-BM-S
• Width: 300 mm11-13/16 inches
• SpecificationsSampling Frequency48 kHzAD Conversion24 bits + AF method*AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.DA Conversion32 bitsProcessing32-bit floating pointEffects170 TypesMaximum Number of Effects15+3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP)*depending on the circumstancesMemories198 (User) + 99 (Preset)Phrase Loop38 sec. (MONO)19 sec. (STEREO)Tuner Internal Detection+/-0.1 centNominal Input LevelINPUT: -10 dBuRETURN: -10 dBuMaximum Input LevelINPUT: +7 dBuRETURN: +7 dBuInput ImpedanceINPUT: 1 M ohmRETURN: 1 M ohmNominal Output LevelOUTPUT (L/MONO, R): -10 dBuPHONES: -10 dBuSEND: -10 dBuOutput ImpedanceOUTPUT (L/MONO, R): 1 k ohmPHONES: 44 ohmsSEND: 1 k ohmRecommended Load ImpedanceOUTPUT (L/MONO, R): 10 k ohms or greaterPHONES: 44 ohms or greaterSEND: 10 k ohms or greaterControlsDOWN switch, UP switch, CTL1 switch, POWER switch, EXP1 switch,PAGE button, MENU button, EFFECTS button, EXIT button, WRITE button, 1-4 knobs, SELECT knob, OUTPUT LEVEL knob,EXP1 pedalDisplayColor Graphic LCD (480 x 272 dots) Touch screenConnectorsINPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type, PHONES jack: Stereo 1/4-inch phone typeCTL2,3/EXP2 jackUSB COMPUTER port: USB Type-C®Bluetooth® ADAPTOR connector: Dedicated connectorDC IN jackPower SupplyAC adaptorCurrent Draw600 mAPower consumption when in OFF mode (when the power automatically turns off)0.0 WAccessoriesAC adaptor (PSB-1U + AC Cord Set)Owner’s manualLeaflet “USING THE UNIT SAFELY”Options (sold separately)Footswitch: FS-5U, FS-5L, FS-6, FS-7Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5Bluetooth® Audio MIDI Dual Adaptor (Model BT-DUAL)Wireless MIDI Expression Pedal: EV-1-WLWireless Foot Switch: FS-1-WLCarrying Case: CB-BM-SSize and WeightWidth300 mm11-13/16 inchesDepth: 183 mm7-3/16 inches
• Height: 74 mm2-15/16 inches
• Maximum height: 96 mm3-3/4 inches
• Weight: 2.2 kg4 lbs 14 oz
