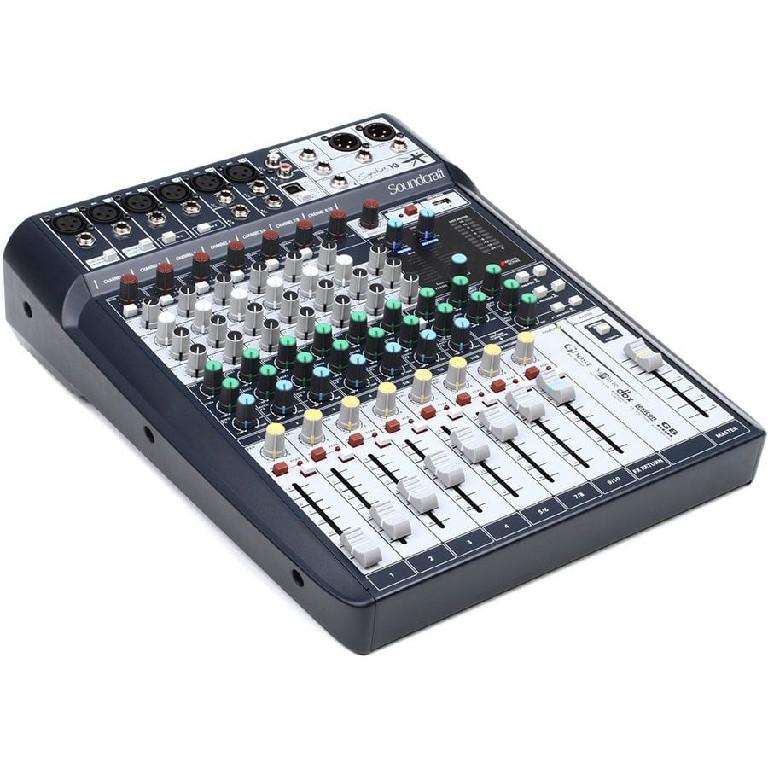

Soundcraft Signature 10 Mixing Console Built In Lexicon Effects

The Soundcraft Signature 10 is a high-performance 10-input small format analog mixer with onboard effects. It features even, premium-quality faders with GB Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs. This mixer is built using tour-grade tough metal construction and top-quality components and has an internal universal power supply.

The Signature 10 incorporates Soundcraft’s iconic Ghost mic preamps, directly drawn from the company’s top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal-to-noise ratio. This mixer also employs Soundcraft’s Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

The Signature 10 includes a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. It offers XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

Additionally, the Signature 10 comes equipped with a 2-in/2-out USB interface, and free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite.

Soundcraft Signature 10 Features:

• High-Performance 10-input small format analog mixer with onboard effects
• Iconic Soundcraft Ghost mic preamps with ultra-low noise performance
• Renowned Soundcraft Sapphyre British EQ with sweepable mid-bands per channel
• Lexicon® Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
• dbx Limiters (High-ratio Compressors) on input channels
• 2-in/2-out USB audio playback and recording
• Switchable Hi-Z inputs for guitars, basses and other instruments
• Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels
• Comprehensive Soundcraft GB Series audio routing
• Smooth premium-quality faders
• Robust metal construction for tour-grade build quality and reliability
• Internal universal power supply

Soundcraft Signature 10 Specifications:

• Channels: 10
• Soundcraft Ghost Preamps: 6
• Soundcraft Sapphyre EQ: 3-band (1 band of swept mids)
• dbx Limiters on Inputs: 2
• Lexicon Effects: Single Engine
• USB Interface: 2-in/2-out
• Auxes: 3
• Subgroups: 0
• Faders: 60mm
