DSL20HR

$699.99

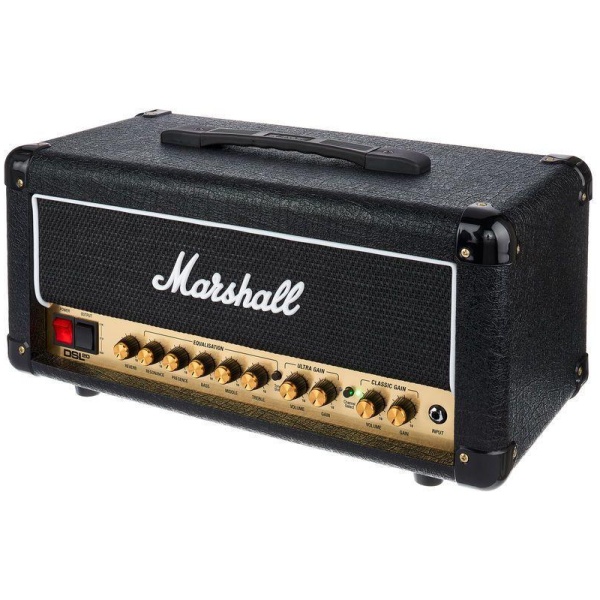

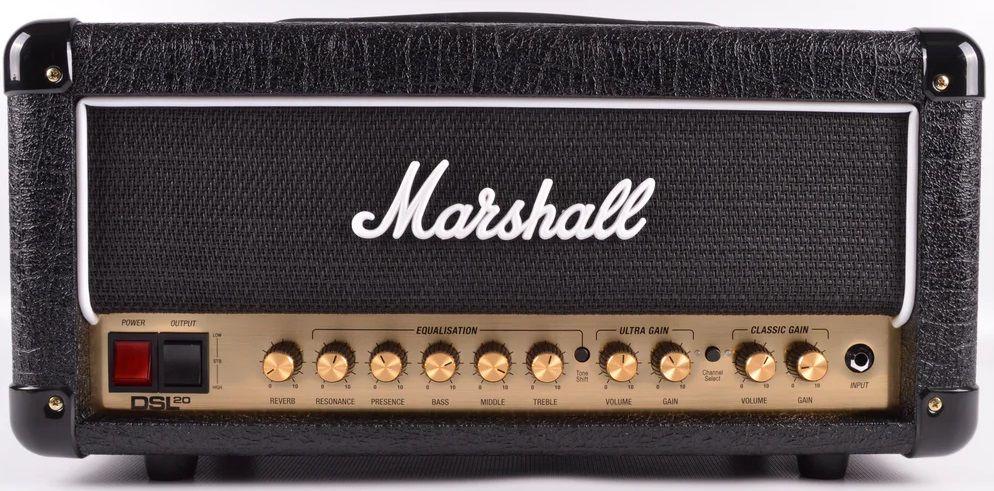

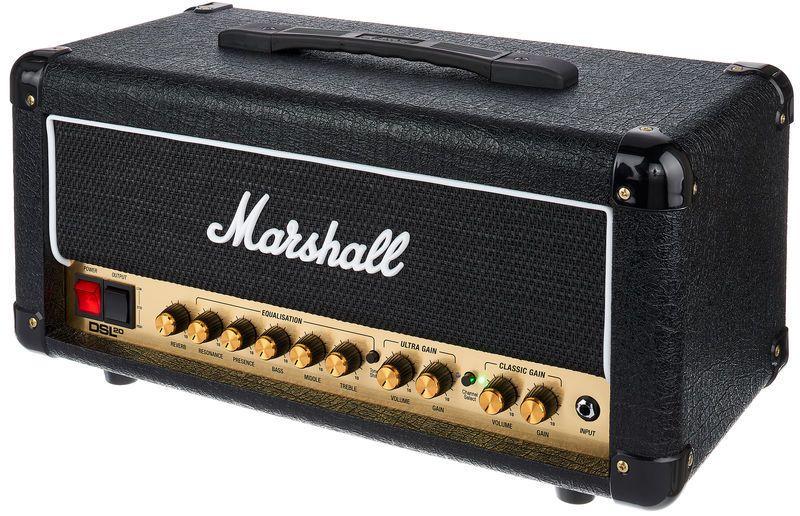

Marshall DSL20HR 20 Watt All Tube Amplifier Head with Digital Reverb and FX Loop

Out of stock

SKU: DSL20HR Categories: ,

The Marshall DSL20 Head is an all tube amp for those who require awesome tone and versatility. The DSL provides you with features and functionality for you to create your sound and unleash your tone.

TECHNICAL SPECIFICATIONS

GENERAL
Model
DSL20HR
Range
DSL
Technology
Valve
Channels
2 (Split) “Ultra gain” and “classic gain”
ELECTRONICS
Output wattage
20W (with power reduction option, 10W)

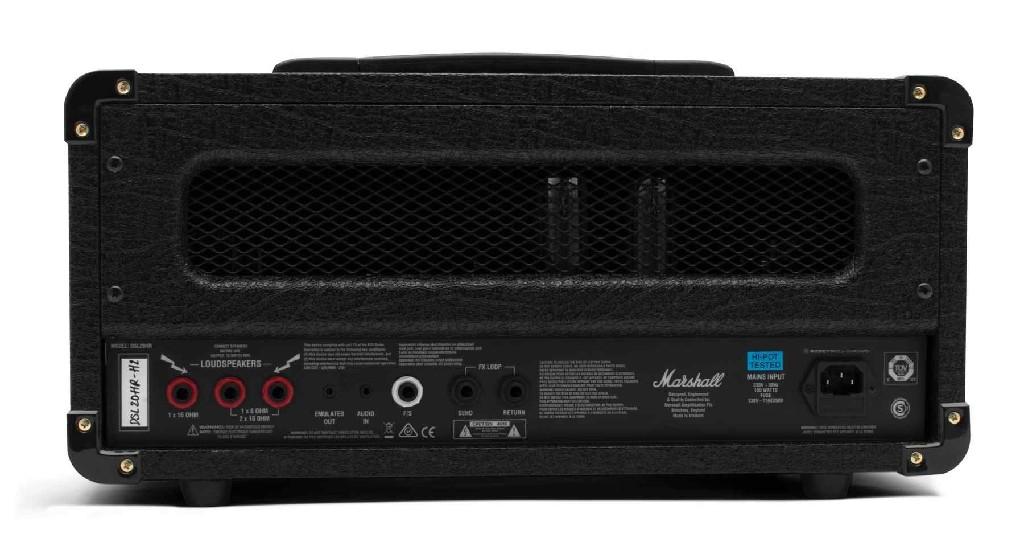

Outputs
Speaker outputs: 3 x 1/4″ jack sockets (16Ω load / 8Ω load), 1 x 3.5mm jack emulated line out
Inputs
1 x 1/4″ instrument jack, 1 x 3.5mm jack Aux in, footswitch
Controls
Classic gain channel (gain, volume), channel select, ultra gain channel (gain volume), tone shift button, treble, middle, bass, presence, resonance, reverb, low power option (on rear)
Effects
Digital reverb
Effects loop
Yes, series, send/return
SPEAKERS
Speaker configuration
1×12″
Speaker model
Celestion Seventy 80 speaker (16Ω, 80w)
Unit impedance
16Ω
VALVES
Preamp valves
3 x ECC83
Power amp valves
2 x EL34
ACCESSORIES
Footswitch
PEDL-90012 included
Cable
Detachable power cable included



Weight 44 lbs
