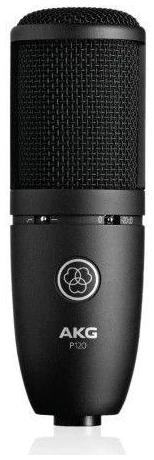

AKG P120 Professional Studio Microphone

The P120 is a 2/3-inch diaphragm true condenser microphone that offers solidly built quality, outstanding performance and excellent value. The low-mass diaphragm delivers a clear sound with accurate sonic detail for vocals, speech and instrument recording in project studios and for home recording.

General Specifications

• Audio frequency bandwidth 20 – 20000 Hz
• Equivalent noise level 19 dB-A
• Sensitivity 24 mV/Pa
• Signal to Noise 75 dB-A

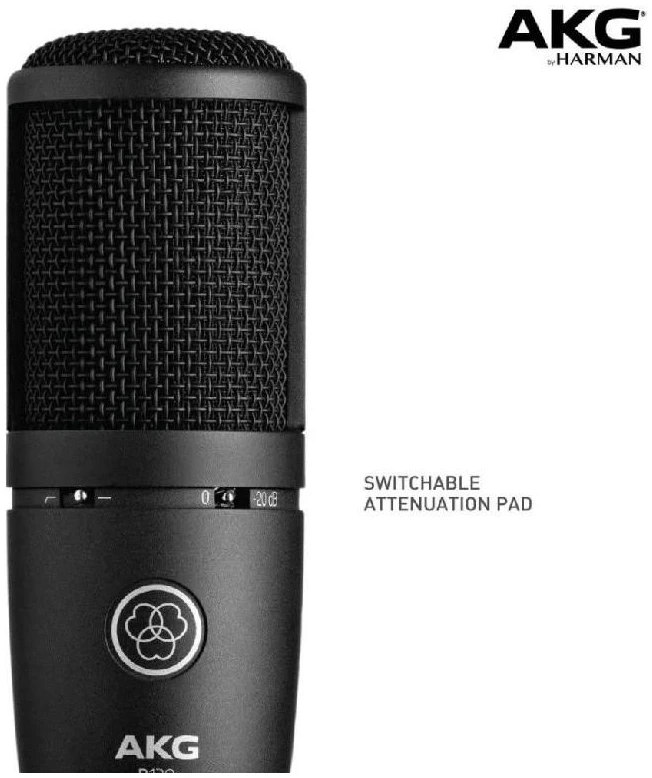

• Preattenuation Pad -20 dB
• Bass cut filter 300 Hz – 6 dB/octave
• Electrical impedance <= 200 Ohms
• Recommended load impedance >= 1000 Ohms
• Polar Pattern Cardioid

Dimensions

• Length 165 mm
• Diameter 54 mm
• Net Weight 455 g

Audio Output

• Type Balanced XLR
• Gender Male
• Contacts 3-pin

Powering Interface

• Voltage 44 to 52 V
• Current <= 3 mA

Application

• Project Studio Yes
• Live Instrument Yes

Instrument

• Vocals Yes
• Piano / Strings Yes
